Vegetable Cutter Package with 3mm Slicing & Grating Discs

A tabletop vegetable preparation package for commercial kitchens that want straightforward slicing and grating without choosing cutting discs separately. The Diamond TVA-38D machine is supplied with one T3/K 3mm slicing disc and one R3/K 3mm grating disc, suitable for medium-production batch preparation.

Key features

• Package includes the TVA-38D cutter, T3/K 3mm slicing disc and R3/K 3mm grating disc.
• Food-contact anodised aluminium alloy and stainless-steel construction.
• Removable upper cover for access and cleaning.
• Ventilated motor, touch-sensitive controls and inclined discharge.
• Safety interlocks on the lever and upper cover, with no-voltage-release protection.
• Two expeller discs supplied with the machine help discharge prepared food; these are separate from the two cutting discs included in this package.

Specifications

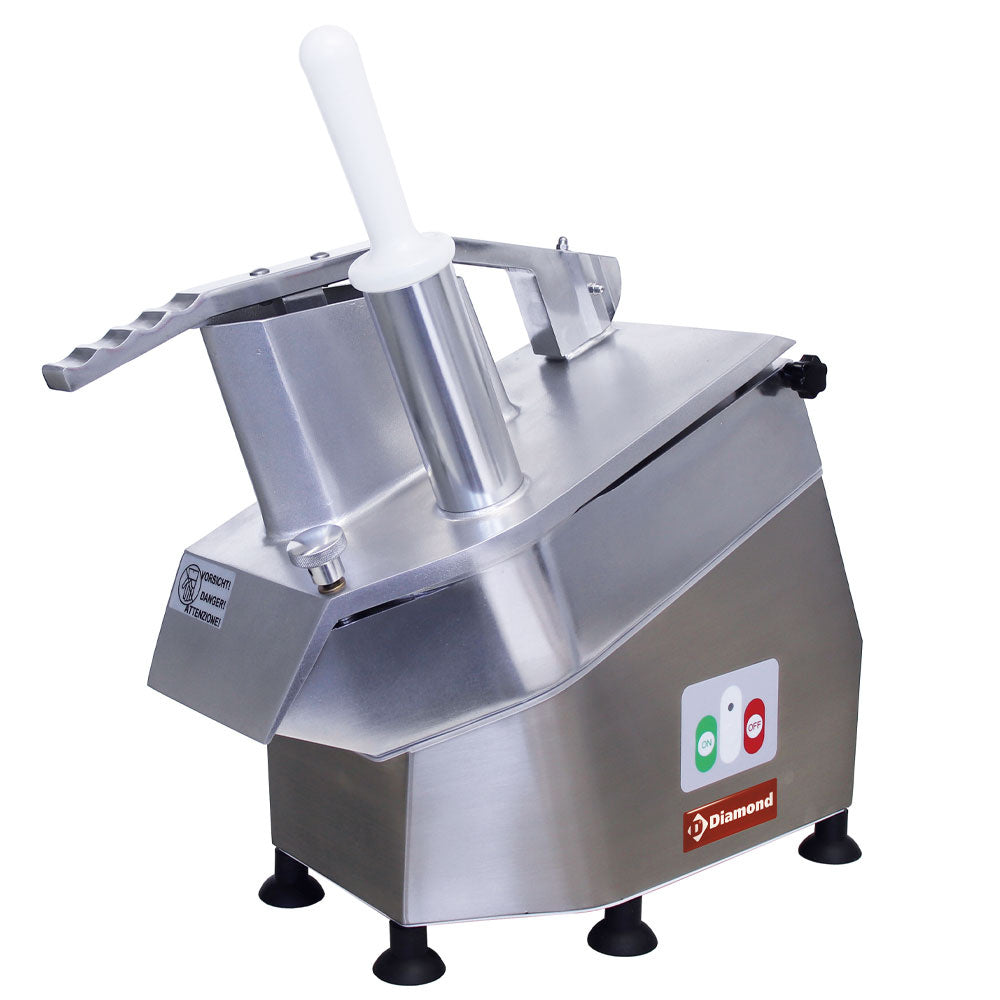

• Manufacturer: Diamond; machine model: TVA-38D

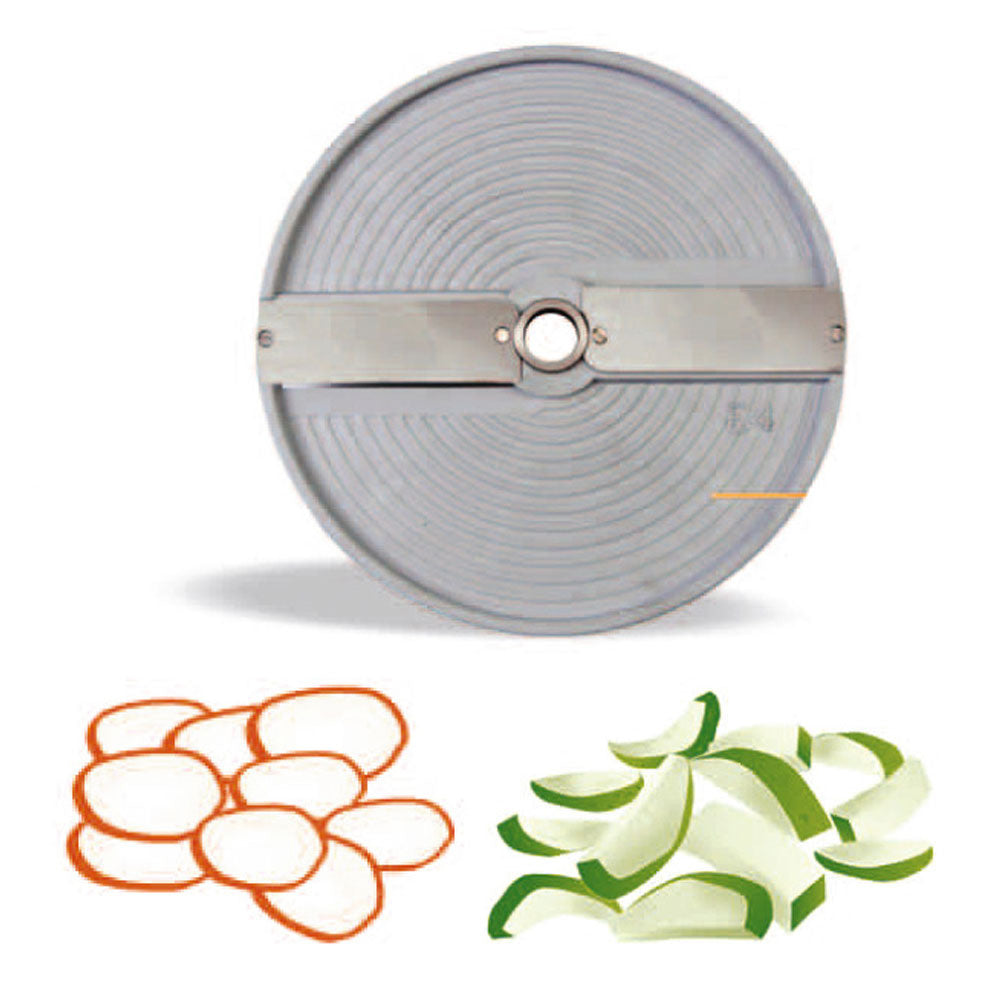

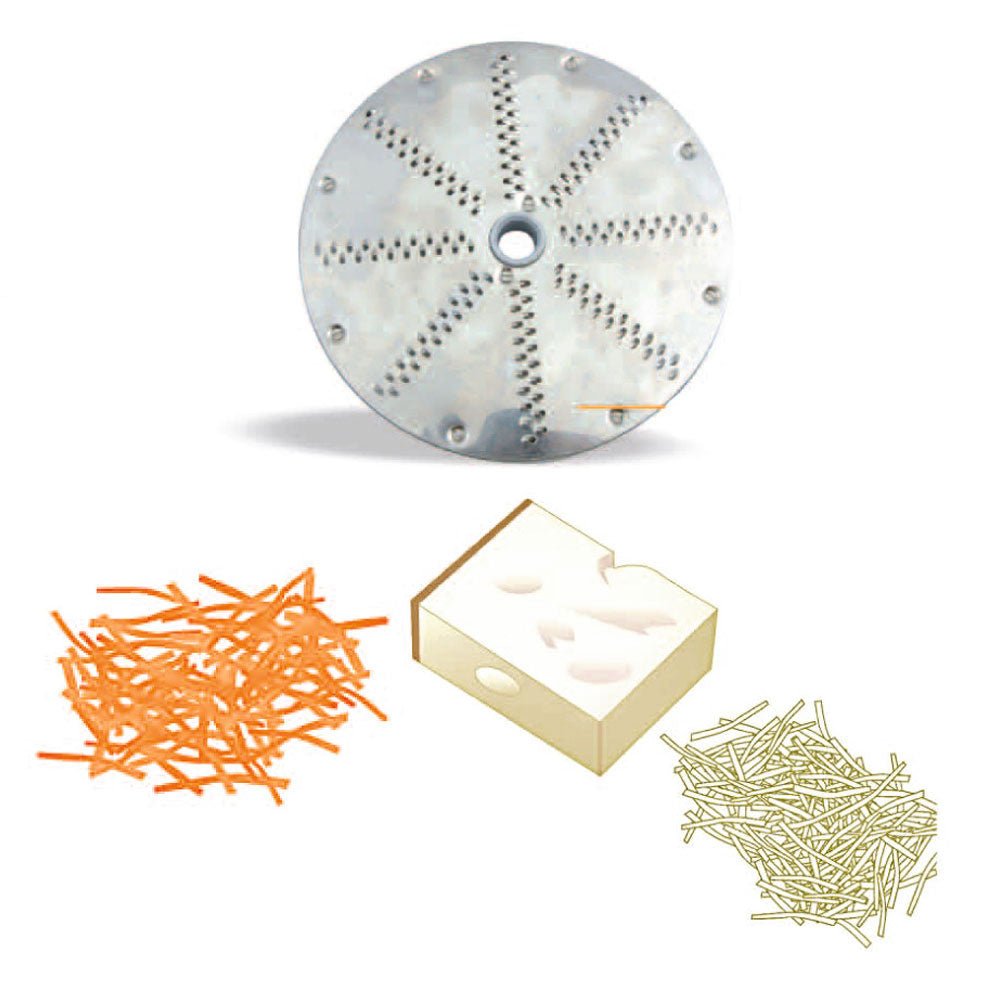

• Included cutting discs: T3/K, 3mm slicing; R3/K, 3mm grating
• Supplier and exact-model technical-sheet dimensions (W × D × H): 240 × 410 × 600mm
• Rated electrical input: 380W; supply: 230V single phase, 50Hz
• Disc speed: 300rpm
• Suitable for medium production; continuous all-day operation is not specified for this listing
• Supplier-listed machine weight: 21kg; the older exact-model technical sheet distinguishes 18.5kg net and 20.5kg gross

Warranty

One-year parts-and-labour cover under the qualifying mainland UK commercial-use option, subject to the applicable conditions and correct installation, use, cleaning and maintenance. Cutting edges, normal wear and other consumables are subject to exclusions; inclusion of cutting discs does not mean blade wear is covered. Cover may differ in remote or offshore areas. Contact KitchenLynx with your postcode before ordering if you need to confirm cover, and report faults before arranging repairs. Your statutory rights are not affected.

Before you order

Review the manufacturer's installation and user manual and the exact-model technical sheet. The technical sheet and current supplier listing give 240 × 410 × 600mm; the manual's older dimension table gives 240 × 570 × 470mm. Allow a stable working area covering both envelopes, plus the operating space needed to raise the lever, remove the cover, feed produce and collect output. Confirm the exact fit before ordering for a restricted counter or opening.

The machine must be set up and connected by a suitably skilled person using a suitable, correctly earthed supply matching its rating plate. A UK plug is not separately confirmed by the current supplier data. Positioning, electrical alterations and installation are not included. Operators must be trained to follow the manual, use the supplied pusher and keep hands clear of moving parts. Disconnect from the mains before cleaning, maintenance or changing discs. Do not process frozen food.

This package provides 3mm slicing and grating. Dicing, chips and other cuts require additional compatible discs or grids and are not included. Food shown in accessory photographs illustrates the type of preparation and is not supplied. Read our commercial catering equipment compatibility guide and contact KitchenLynx before ordering if a connection, access or intended-use detail needs confirming.

Delivery and returns

Standard UK delivery is free at this product price, including standard parcel or pallet delivery to addresses served through our checkout. KitchenLynx absorbs additional supplier charges for standard delivery. Contact us before ordering for remote locations, restricted access or Northern Ireland pallet deliveries so we can check arrangements; this does not change the standard delivery charge.

This is large, heavy commercial equipment. Standard pallet delivery is to an accessible, safe, ground-level kerbside or outside delivery point. Carrying indoors or upstairs, unpacking, positioning, installation, commissioning and disposal are not included. Arrange suitable receiving help and handling equipment, and check the complete access route before ordering. Optional services outside standard delivery are only supplied and priced by separate agreement. Confirm the order-specific delivery estimate before booking installation; next-day delivery is not promised.

Contact KitchenLynx before arranging a return. Unless the goods are faulty, damaged, incorrectly supplied or the law requires otherwise, change-of-mind return transport is the customer’s responsibility and can be costly for bulky equipment; ask us for applicable return-cost information before purchase. See our delivery policy and returns policy for the applicable terms. Your statutory rights are not affected.
